DR-010-SMon: Introduce System Monitoring (SMon) middleware component for automotive ECUs#

  • Date: 2026-10-09

Introduce System Monitoring (SMon) middleware
status: proposed
context: S-CORE lacks a common, portable, and configurable system monitoring component for observing CPU and memory resource usage on automotive ECUs across Linux and QNX. Applications currently have no standardized S-CORE mechanism for collecting system-, CPU-core-, process-, and application-level resource metrics and detecting configurable resource threshold violations.
decision: Introduce System Monitoring (SMon) as an S-CORE middleware component that periodically collects CPU and memory metrics at system, CPU-core, process, and application level, evaluates configurable monitoring thresholds, and provides the collected monitoring information to S-CORE applications and external diagnostic or visualization tools through defined interfaces.
version: 1
dec_rec__arch__introduce_smon_middleware
Decision Record

Summary#

This feature request proposes introducing System Monitoring (SMon) as a reusable S-CORE middleware component for monitoring CPU and volatile memory resource utilization on automotive ECUs running Linux or QNX.

SMon provides periodic resource measurements, configurable threshold evaluation, and standardized integration interfaces for error reporting, diagnostic fault recording, and logging.

Detailed Feature Requirements#

Detailed requirements are documented separately:

Context & Motivation#

On a Domain Controller ECU, multiple applications share CPU and memory resources simultaneously. There is currently no standardized S-CORE middleware component that:

  • Periodically measures CPU and memory load at the system, core, process, and application-group level

  • Evaluates those metrics against configurable thresholds and triggers fault reporting (error aggregator + DTC) or warning logs accordingly

  • Operates portably across Linux and QNX via a clean platform abstraction boundary

  • Exposes well-defined required interfaces for error reporting, DTC recording, and logging — fully decoupled from any specific backend implementation

Without such a component, each project team implements ad-hoc monitoring logic, leading to fragmentation, inconsistency, and missed faults across vehicle programs.

Requested Capabilities#

CPU Monitoring#

  • [ ] Overall system CPU load (as a percentage)

  • [ ] CPU load per individual core

  • [ ] CPU load per running application (process)

  • [ ] CPU load per configured application group

Memory#

  • [ ] Overall volatile memory load (as a percentage)

  • [ ] Volatile memory load per running application (process)

  • [ ] Volatile memory load per configured application group

Threshold & Alerting#

  • [ ] Configurable threshold rules per metric type

  • [ ] Configurable comparison operator per rule (e.g., greater than)

  • [ ] Configurable actions per rule: ReportError, RecordDTC, LogWarning

  • [ ] Configurable trigger mode per action: Always or OnChange

  • [ ] Threshold rules scopeable to a specific application or application group

Integration Interfaces#

  • [ ] Required interface for error reporting to the central error aggregator

  • [ ] Required interface for DTC recording in the fault memory

  • [ ] Required interface for log message publication

Configuration#

  • [ ] All parameters readable from an external file (e.g., JSON) at startup — no recompilation

  • [ ] Named application groups definable in configuration

  • [ ] Logging enable/disable configurable per metric category

  • [ ] Metrics logging interval configurable

  • [ ] One or more threshold rules definable in configuration

General & Platform#

  • [ ] Structured log messages published at the configured interval

  • [ ] Graceful shutdown on SIGINT / SIGTERM

  • [ ] Concurrent metric collection to minimize per-cycle latency

  • [ ] Portable between Linux and QNX via a platform abstraction boundary

  • [ ] Robust against processes or threads appearing/disappearing during an active scan

Integration Context#

The SMon component integrates with three platform-provided services via required interfaces:

External Service

Role

Central Error Aggregator

Receives fault notifications when configured thresholds are breached

Fault Memory (DTC Store)

Receives DTC records for persistent fault logging

Logging Backend

Receives structured metric snapshots and threshold warning messages

⚠️ SMon does not mandate a specific implementation of any of these services. They are integration points to be fulfilled by the platform adopter.

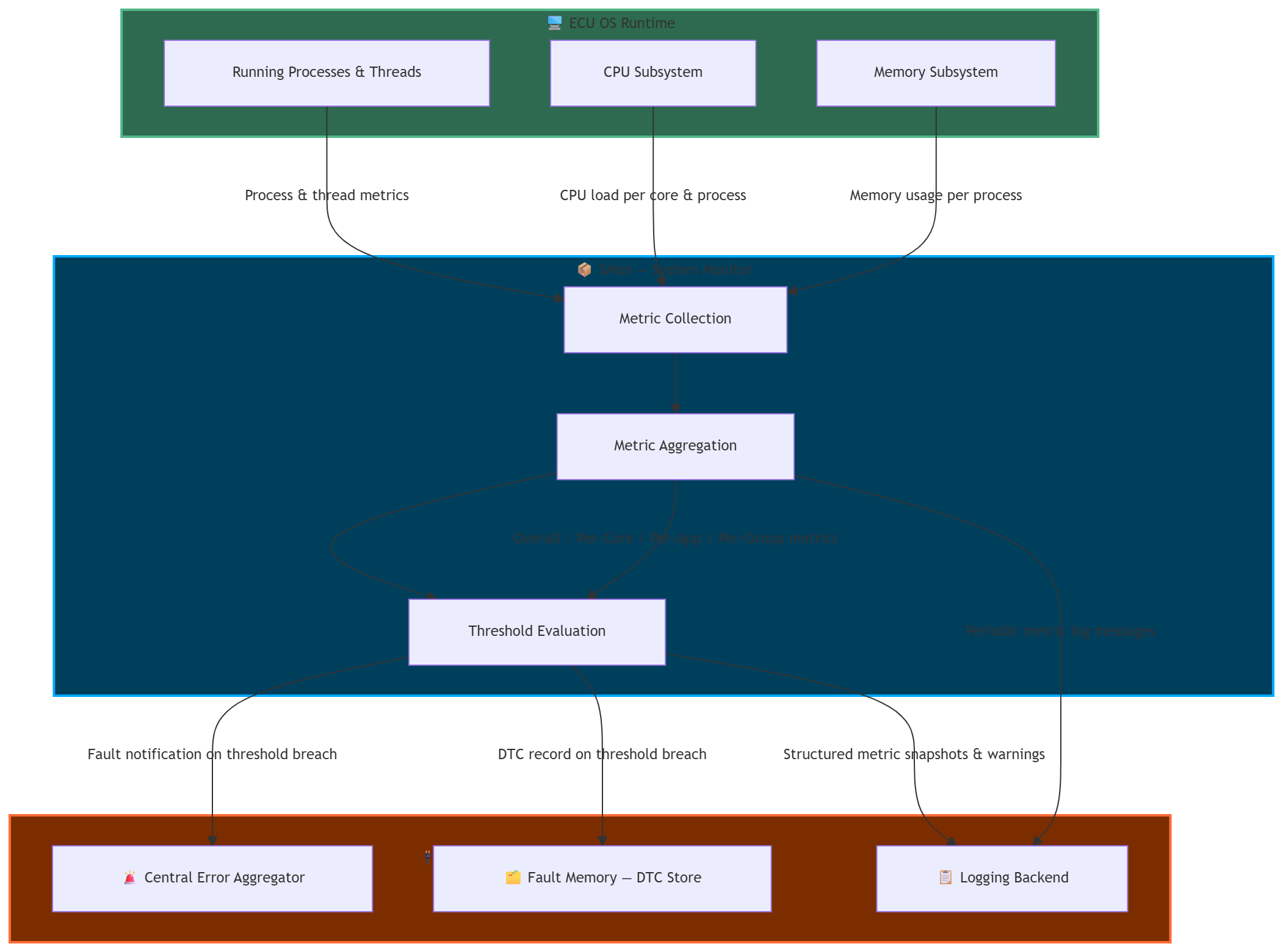

SMon Integration Context Diagram

Anticipated Future Extensions#

The following items are out of scope for this initial request but identified as natural future extensions:

Future Need

Description

Additional metric sources

Network I/O (SOME/IP, DDS), Disk I/O, GPU utilization

Threshold hysteresis

Sustained-breach detection over N cycles + lower watermark for alert clearing

Live telemetry streaming

Real-time metric streaming over a network transport to visualization tools or IDE dashboards

Cross-platform unit testing

Verifying platform-specific monitor logic on a Linux host via OS-call mocking (no QNX target needed)

Stakeholders#

Role

Party

Requester

Valeo

Platforms

Linux, QNX

Domain

Platform Services / Health & Diagnostics

Acceptance Criteria#

  • [ ] All needs and requirements reviewed and accepted by the S-CORE community

  • [ ] Required interface contracts (IErrorReporter, IDTCRecorder, ILogger) defined and agreed upon by the community

  • [ ] Platform portability scope (Linux + QNX) acknowledged and accepted

  • [ ] A follow-up implementation issue is created and linked to this request
