Overview

The score::mw::crypto module provides a provider-agnostic C++ (>=17) middleware interface for cryptographic operations, key management, certificate lifecycle, and shared memory allocation. It follows a client-daemon architecture where the client library communicates with a daemon process over IPC.

The API is organized around a single runtime handle type — CryptoResourceId — that encapsulates a daemon-assigned 64-bit identifier, resource type, persistence semantics, and owning provider index. Applications resolve human-readable string identifiers to CryptoResourceId handles once, then use these compact numeric handles for all subsequent operations.

Key design principles:

• Provider-agnostic: Operations work identically across hardware (HSM, TEE) and software (OpenSSL, SoftHSM) providers

• PQC-ready: AlgorithmId uses strings for extensibility, supporting ML-KEM, ML-DSA, SLH-DSA, XMSS, LMS, and SHAKE algorithms

• Ephemeral-by-default keys: All key generation produces ephemeral keys; explicit PersistKey() promotes to persistent storage

• Zero-copy data plane: Provider-compatible shared memory enables zero-copy from application through daemon to crypto device

• Backward-compatible extensibility: All configs use default constructors with fluent builders; new optional fields never break existing callers

Requirements Linked to Component Architecture

No needs passed the filters

Architecture Details

• API Architecture
  • Class Diagram
• API Description
  • Resource ID Model
  • Resource Lifecycle and CryptoResourceGuard
  • Memory and Data Plane Model
  • Zero-Copy Path
  • Base Class Hierarchy
  • Device Binding
  • Access Control
  • Key Operation Permission Model
  • Configuration Model
  • Config Extensibility Contract
  • Provider Auto-Resolution
  • Certificate Lifecycle
  • IPC Transport
  • Operation Timeout and Deadline
  • Rationale Behind Architecture Decomposition
• API Dynamic Architecture
  • Typical Usage Flow
  • Pre-Deployed Key Flow (Slot-Direct Path)
  • Pre-Deployed Key Flow (Guard Path — Multi-Context Reuse)
  • Ephemeral Key Generation and Use
  • Hashing Example
  • Context Reuse via Reset()
  • Signing with PQC Algorithm
  • Certificate Verification
  • Key Operation Permissions
  • Operation Timeout Configuration
• Interfaces
• Provider Architecture
  • Provider Families
  • Directory Layout
• Key Management Architecture
  • Architecture Overview
  • Class Diagram
  • Sequence Diagrams
  • Key Lifecycle
  • MAC Operation Example
  • Thread Safety
  • Multi-Client Key Deduplication
  • Access Control
  • PKCS#11 Session Management
  • Access Control
  • Configuration
• Design Decisions
  • ABI Compatibility for IPC Layer (Deferred Post-Stabilisation)
  • CryptoResourceGuard Lifetime via Daemon-Side Reference Counting
  • Shared-Connection Anchor for Persistent Resource ID Stability
  • AlgorithmId as FixedCapacityString<64>
  • Synchronous-Only IPC Model
  • Context Reset() for Streaming Context Reuse
  • Two-Layer Per-Call Timeout with Daemon-Side Enforcement
  • KeyOperationPermission as a Capability Bitmask
  • Unified Cipher Context (No Encrypt/Decrypt or Symmetric/Asymmetric Split)
  • IMemoryAllocator Separated from ICryptoStack
  • Control Plane IPC Boundary Copy with Daemon-Internal Zero-Copy References
  • Per-Operation Parameter Structs with Dual Overloads

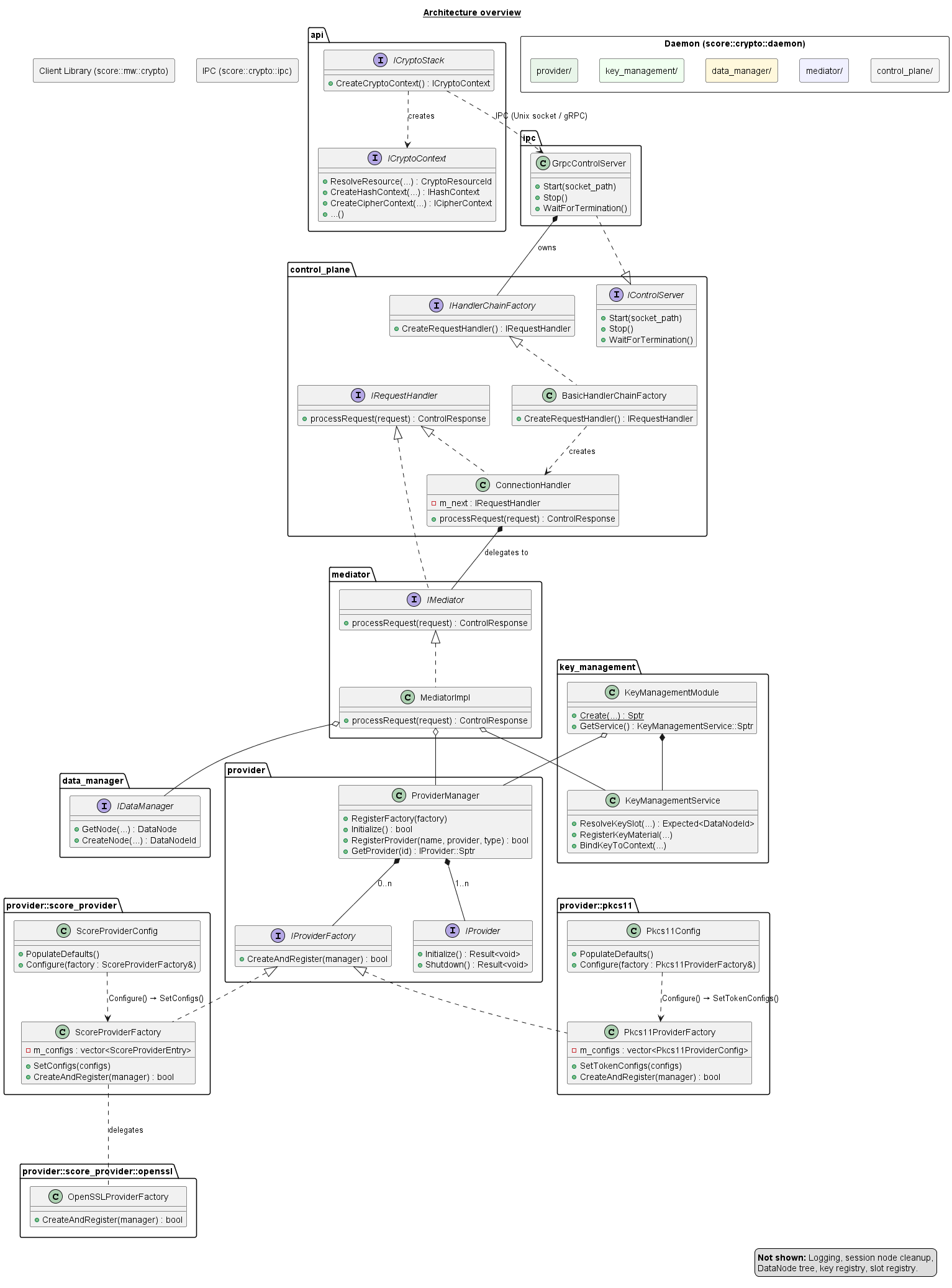

Static Architecture

The components are designed to cover the expectations from the feature architecture (i.e. if already exists a definition it should be taken over and enriched).

Crypto		status: invalid security: YES safety: QM
comp__crypto		Component

Provider Layer

The provider layer decouples the daemon from concrete cryptographic library implementations through two complementary abstractions:

IProvider

The single entry-point into one cryptographic back-end (e.g. OpenSSL, a PKCS#11 token). Exposes GetCryptoHandlerFactory(), GetKeyFactory(), and GetKeySlotHandler(). Lifecycle is managed by ProviderManager.

IProviderFactory

A pure-virtual factory interface with a single method bool CreateAndRegister(ProviderManager&). Concrete implementations encapsulate the construction and registration of one or more related IProvider instances. Factories are registered externally (daemon bootstrapper) via ProviderManager::RegisterFactory() and called in registration order during ProviderManager::Initialize().

ScoreProviderFactory

Top-level factory for the score interface family. Accepts a vector of ScoreProviderEntry configs (default: single OpenSSL entry). CreateAndRegister() iterates configs and delegates to the appropriate internal factory (e.g. OpenSSLProviderFactory).

OpenSSLProviderFactory

Internal factory used by ScoreProviderFactory. Constructs score::openssl::OpenSSL and registers it as CryptoProviderType::SOFTWARE under the common::kProviderNameOpenSSL name. No per-instance configuration required.

Pkcs11ProviderFactory

Accepts an injected std::vector<Pkcs11ProviderConfig> via SetTokenConfigs() (the acceptor side of the visitor pattern) or through its explicit vector constructor. The daemon bootstrapper does not build configs directly; it delegates to Pkcs11Config::Configure():

config.GetPkcs11Config().PopulateDefaults();
auto factory = std::make_unique<Pkcs11ProviderFactory>();
config.GetPkcs11Config().Configure(*factory);
manager.RegisterFactory(std::move(factory));

CreateAndRegister creates a single shared Pkcs11Module (so C_Initialize is invoked exactly once regardless of token count), then constructs and registers one Pkcs11Provider per entry as CryptoProviderType::HARDWARE.

Visitor pattern — Pkcs11Config::Configure() is the visitor: it iterates the Pkcs11TokenEntry list, converts each entry to a Pkcs11ProviderConfig (filling labels, PIN, cleanup strategy), and calls factory.SetTokenConfigs(). This keeps the Pkcs11TokenEntry → Pkcs11ProviderConfig conversion entirely within the PKCS#11 subsystem (score/crypto/daemon/provider/pkcs11/pkcs11_token_config.*).

Multi-token coexistence: multiple Pkcs11TokenEntry entries in Pkcs11Config produce one Pkcs11Provider per token. All providers from the same factory share a single Pkcs11Module (C_Initialize / C_Finalize is called once), but each provider maintains its own session pools, TokenAuthGuard, and Pkcs11KeyStore. Login state and key registrations are fully isolated. This design supports scenarios such as separate SoftHSM slots for different trust domains within the same process.

For session lifecycle details see PKCS#11 Session Management in the key management details.

ProviderManager

Aggregates all registered providers and routes requests by ProviderId or CryptoProviderType. After all factories have been called, Initialize() applies the daemon configuration and calls Initialize() on every provider.

Dynamic Architecture

The typical interaction sequence between Application, Client Library, and Crypto Daemon:

See API Dynamic Architecture for detailed usage flows including pre-deployed key paths, ephemeral key generation, context reuse, PQC signing, certificate verification, and timeout configuration.

Interfaces

See Interfaces for the full interface descriptions.

Design Decisions

See Design Decisions for the full design decision records.
